Overview

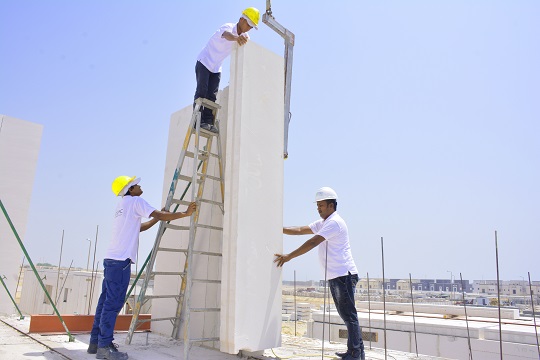

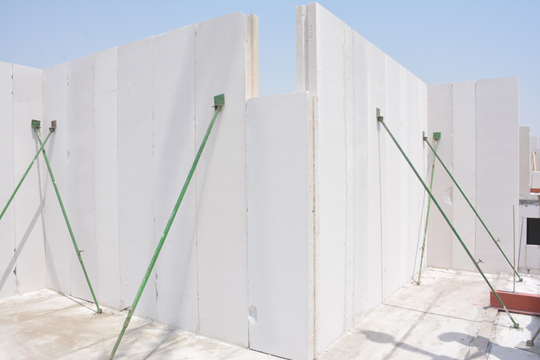

Precast Aerated Concrete PAC Panels are lightweight, fire resistant, fast and easy to install. PAC panel is a reinforced (Grade 70 steel) element spanning with full story height. PAC Panel is based on a standard 60 cm wide module. The thickness and panel length (height) vary depending on the design requirements and constraints of the project. PAC Panels can be applied vertically or horizontally according to the application. It is produced with a groove from both sides (thickness sides) where grout is poured in case of load bearing wall system. It also comes plain on edges when it is applied as partition walls, boundary walls, shaft walls, cladding on steel structure or concrete structure. In this case, fixation will be through using thin bed mortar PAC Adhesive and steel angles.
Product Dimensions
| Thickness (mm) |
Width (m) |
Max length (mm) |
Pieces per pallet |
Pallet volume (m3) |
| 100* |
600 |
3,600 |
15 |
3.40 |
| 150** |
600 |
4,000 |
10 |
3.60 |
| 200 |
600 |
6,000 |
7 |
5.04*** |
| 250 |
600 |
6,000 |
6 |
5.40 |
- *** 0.36 m3 will be waste matrerial in each pallet
Technical Specification
|
Load-bearing Panel |
| Density grade |
PAC - 4 |
PAC - 6 |
| Mean Compressive Strength (MPa) |
5 |
7.5 |
| Mean dry density (kg/m3) |
500 - 600 |
600 - 700 |
| Mean working density (kg/m3) |
600 - 700 |
700 - 800 |
| Dry thermal conductivity [ W/(m2 k)] |
≤0.13 |
≤0.15 |
| Dry shrinkage |
|
≤0.02% |
| Shrinkage Strain |
/°C |
200x10-6 |
| Thermal Expansion coefficient |
/°C |
8.1x10-6 |
| Modulus of Elasticity |
N/mm2 |
2330 |
2970 |
Permissible Dimension Tolerance
| Dimension |
Floor or roof panels (mm) |
Wall Panels (mm) |
| Length |
±5 |
±5 |
| Width |
±3 |
±3 |
| Thickness |
±3 |
±3 |
| Tongue |
±3 |
±3 |
| Groove |
±3 |
±3 |
Panel Weight
| Thickness (1) |
Design Weight PAC-4 |
Design Weight PAC-6 |
Groove Dim |
| cm |
Kg/m2 |
Kg/LM* |
Kg/m2 |
Kg/LM* |
cm |
| 15 |
90 |
54 |
105 |
63 |
5 |
| 20 |
120 |
72 |
140 |
84 |
5 |
| 25 |
150 |
90 |
175 |
105 |
5 |
| 30 |
180 |
108 |
210 |
126 |
5 |
- *Considering a panel width 60 cm
Thermal Properties
| Thickness (mm) |
R-Value (m2 k/W) |
Thickness (mm) |
R-Value (m2 k/W) |
| 100 |
0.77 |
25 |
1.92 |
| 150 |
1.15 |
30 |
2.31 |
| 200 |
1.54 |
|
- |
R=Thermal resistance
Fire Resistance
| Density Class PAC – 4 |
| Thickness |
Fire Rating |
| Cm |
Hour |
| 20 Cm and up |
7 |
Note: Testing performed under ASTM E119 “Fire Test of Building Constructions and Materials”.
Acoustic Performance
| Density Class PAC – 4 |
| PAC Panel Thickness 20 cm |
40 |
| PAC Panel Thickness 25 cm |
42 |
Note: Testing performed at acoustic System, Inc. Austin TX in accordance with ASTM (90) Standard Method for Laboratory Measurement of Airbome Soung Transmission Loss of Building Partitions.
Acoustic Performance
| Permissible Compressive Stress (N/mm2) for the walls |
| Wall Height (m) |
Thickness (mm) |
|
| - |
150 |
200 |
250 |
300 |
| 2.50 |
- |
0.62 |
0.91 |
1.10 |
1.10 |
| 2.75 |
- |
0.48 |
0.83 |
1.02 |
1.10 |
| 3.00 |
- |
0.36 |
0.74 |
0.96 |
1.10 |
| 3.50 |
- |
|
0.55 |
0.81 |
0.98 |
| 4.00 |
- |
|
|
0.66 |
0.86 |
| 4.50 |
- |
|
|
|
0.74 |
| 3.50 |
- |
|
|
|
0.62 |
Maximum height in mm of wall panels with different wind load design and thickness
| |
0.8 kNm |
1.4 kNm |
2 kNm |
2.6 kNm |
| 100 |
3500 |
3000 |
2500 | |
| 150 |
4500 |
4000 |
3500 | 3000 |
| 200 |
6000 |
6000 |
6000 | 6000 |
| 250 |
6000 |
6000 |
6000 | 6000 |
| 300 |
6000 |
6000 |
6000 | 6000 |
